- Description
Brief description

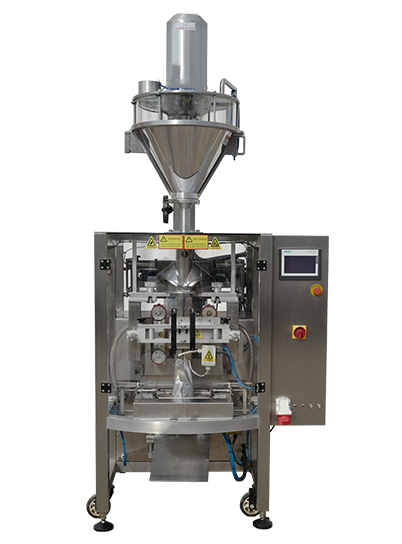

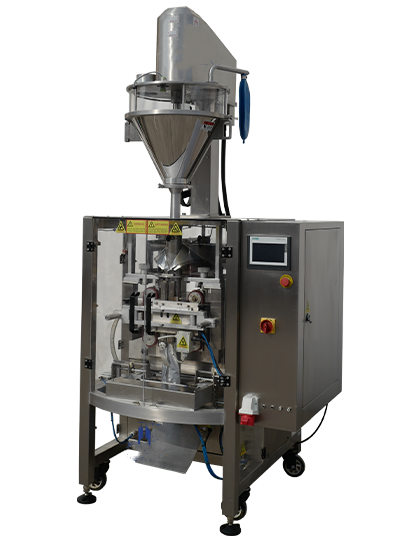

This machine and measuring configuration can automatically complete the entire packaging process of measuring, feeding, filling and bag making, date printing, inflation (exhaust), and finished product transportation, and automatically complete counting. Suitable for packaging milk powder, protein powder, solid beverages, white sugar, glucose, coffee powder, etc
Main features
Using an intelligent thermostat for accurate temperature control; The packaging seal is beautiful and smooth.
Adopting PLC servo system, pneumatic control system, and ultra large display touch screen to form the driving control core; Improved the control accuracy, reliability, and intelligence level of the entire machine
The touch screen can store packaging process parameters for various products, and can be used at any time without resetting when changing products.
Equipped with a fault display system to assist in timely troubleshooting in case of malfunctions.
Pillow shaped bags and hanging hole bags can be made according to customer needs.
There are options for both full stainless steel models and carbon steel spray coating models.
Main parameters
model | DH-QL-240L |
measurement method | Screw metering |
Packaging bag type | Three sided seal, four sided seal, back seal, strip seal |
Bag size | L:55-150mm W:40-120mm |
packaging speed | 35 – 70 bags/min |
packaging precision | ≤ 100g, ≤±2%; 100 – 500g, ≤±1% |
Power requirements | 3P AC208-415V 50/60Hz |
Total machine power | 3.7kw |
Total weight | 300kg |
compressed air | 6kg/m2 , 0.2m3/min |
Whole machine volume | 1150×850×2230mm |
bin volume | 25 L |
