- Description
Brief description

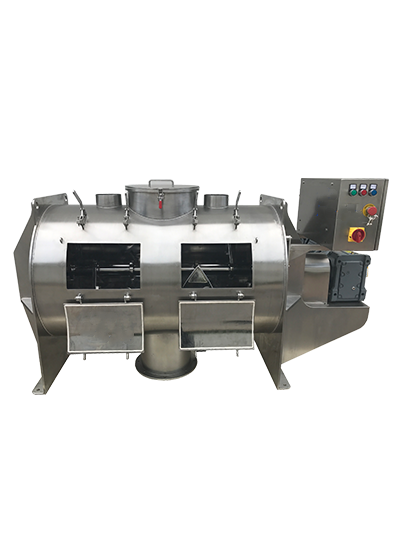

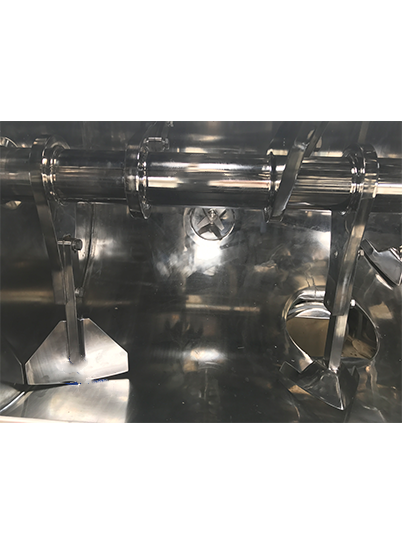

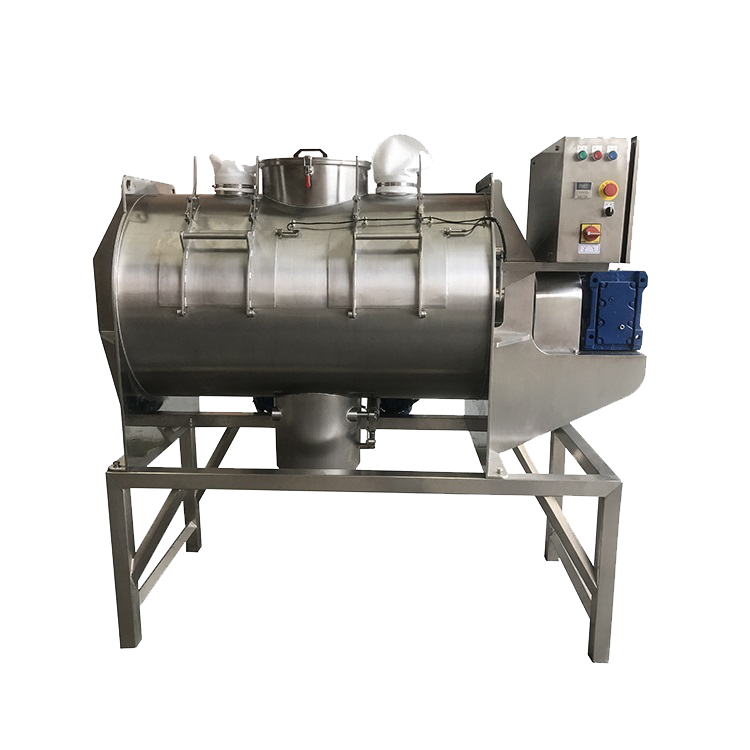

The plow blade mixer consists of a circular cylinder, a transmission mechanism, plow blades, flying blades, and a discharge device. The plow blades inside the plow blade mixer rotate with the main shaft, causing the material to undergo radial circumferential turbulence along the cylinder arm. At the same time, the radial material flows through the flying blade group and is scattered by the high-speed rotating flying blades, constantly changing and compounding to achieve uniform mixing of the material in a short period of time.
Main features
The plow blade mixer has the following characteristics:
1. Quickly cut, crush, and mix materials;
2. Advanced processing technology ensures that the equipment has a beautiful appearance and the distance between the plow blade and the cylinder is smaller;
3. The main shaft seal adopts polytetrafluoroethylene seal and gas seal, with dual sealing;
4. A jacket heating or cooling device can be added
Main parameters
model | TDP-200 | TDP-300 | TDP-500 | TDP-1000 | TDP-1500 | TDP-2000 |
Effective capacity | 200L | 300L | 500L | 1000L | 1500L | 2000L |
Full volume | 280L | 400L | 680L | 1280L | 1820L | 2450L |
loading factor | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
Rotational speed | 53rpm | 53rpm | 45rpm | 45rpm | 39rpm | 39rpm |
The weight of the whole machine | 450kg | 680kg | 980kg | 1350kg | 1650kg | 2300kg |
The power of the whole machine | 4kw | 5.5kw | 7.5kw | 11kw | 15kw | 17.5kw |
Total length | 1630 | 1850 | 2030 | 2550 | 2900 | 3200 |
Overall width | 850 | 950 | 1000 | 1230 | 1330 | 1460 |
Overall height | 1100 | 1180 | 1330 | 1570 | 1760 | 1880 |
Cylinder radius | 277 | 307 | 377 | 450 | 485 | 534 |
Power supply | 3P AC208-415V 50/60Hz | |||||
