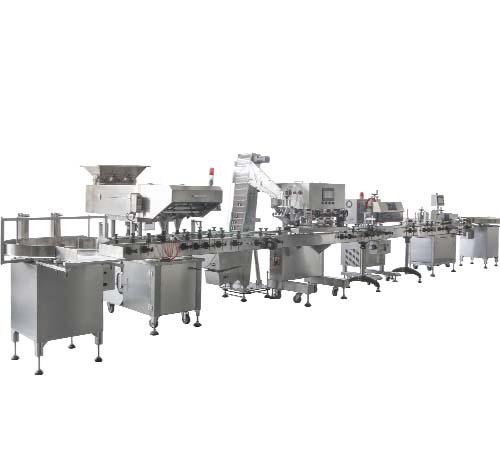

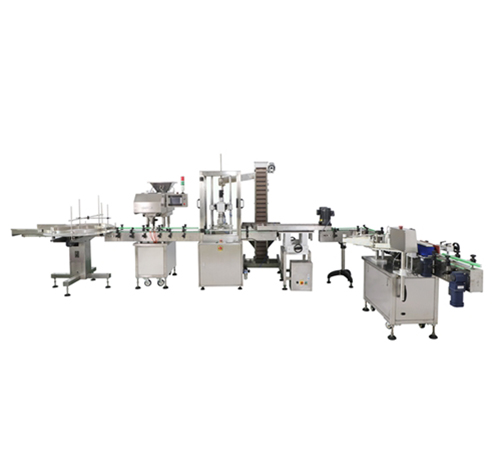

Turn-key flavouring automatic bottle packing, multi-station rotary filling, capping, induction sealing, labeling ,cartoning and palletizer lineInquiry
Brief description
This system equipment is suitable for flavoring, spice,condiment,pepper powder, black pepper powder into bottle, and requires multi-station rotary filling, capping,induction sealing,labeling, cartoning and pelletizer . It is turn-key project.
Main features
Packaging materials: flavouring, spice, condiment, pepper powder, black pepper powder, other sauce powders Applicable weight: 10-2000 grams Suitable tank specifications: # 300, # 307, # 401, # 502 tanks, suitable tank height: 40-200mm Production capacity: 20-120 bottles/minute, the speed mainly depends on the number of multi-station rotary head of filling machines.
Filling accuracy: ± 1%(below 500g) ± 0.5%(over 500g)
Power supply: 3-phase 380V 50Hz Whole line power: 35KW Compressed air: 1.45m3/min, pressure: 6kg/cm2 Turn-key bottle packing line: automatic bottle turn-table, bottle sorting, automatic filling, automatic capping, automatic induction sealing,labeling, automatic printer, automatic cartoning, and palletizer etc;Elevator Main parameters
No. | Name |
1 | Bottle turn-table |
2 | Conveyor |
3 | Inclined Conveyor |
4 | Powder Falling Table |
5 | Vibrating Screen |
6 | Transition Hopper |
7 | Vacuum Feeder |
8 | Mixer |
9 | Platform |
10 | Storage hopper |
11 | Vacuum Feeder |
12 | Screw Conveyor |
13 | Metal Detector |
14 | Multi-station filling machine |
15 | Plastic Lid Capping Machine |
16 | Elevator |
17 | Induction sealing |
18 | Labeling |
19 | Printer |
20 | Cartoning |
21 | Palletizer |
