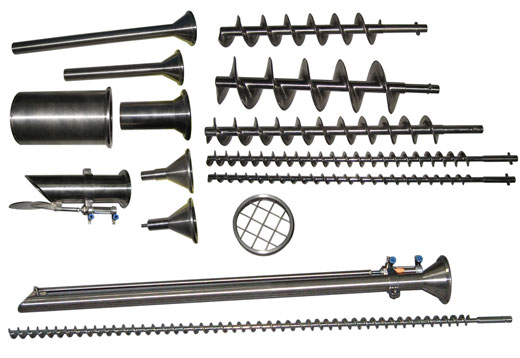

Auger fillers accessories

Sizes #12 - #30 Milled from Solid Bar Stock
Auger #	Diameter(mm)	Pitch(mm)	Stem Dia.(mm)	thickness(mm)	Cu. Centimeters Per Revolution
# 12	12	12	5	1.5	0.98
# 13	13	12	6	1.5	1.1
# 14	14	14	6	1.5	1.57
# 16	16	15	6	1.5	2.33
# 20	20	18	6	1.5	4.35
# 25	25	20	8	1.5	8.15
# 30	30	22	8	1.75	13.3
Sizes #35 - #85 Rolled and Welded Construction
# 35	35	25	10	2	20
# 40	40	30	10	2	33
# 45	45	33	10	2	47
# 50	50	36	12	2	63
# 55	55	40	12	2	86
# 60	60	45	12	2.5	115
# 65	65	50	12	2.5	152
# 70	70	53	14	2.5	186
# 75	75	56	14	3	226
# 80	80	60	14	3	278
# 85	85	65	14	3	342

Descriptive abstract:

Accessories used with a particular filling machine will depend on a variety of factors, including: product flow characteristics and density, filled amounts, containers size & configuration, filling times, and accuracy. Before making the final selection and setup of accessories, the product and container should be tested to ensure the machine will fulfill your requirements. All-Fill offers thorough testing services and facilities for the analysis of products and suitability of accessories.
