- Description
Brief description
Container capacity: Conventional 150 liters, customizable 50-2000 liters; The feeding can also be selected without a material box and directly connected to the preceding equipment
Main features
Power supply: 3P AC208-415V 50/60Hz
Container capacity: Conventional 150 liters, customizable 50-2000 liters;
The feeding can also choose to be connected directly to the preceding equipment without a material box;
Conveyor length: Conventional 0.8 meters, customizable 0.4~6 meters;
Delivery capacity: In addition to the delivery capacities listed above, other delivery capacities can also be customized;

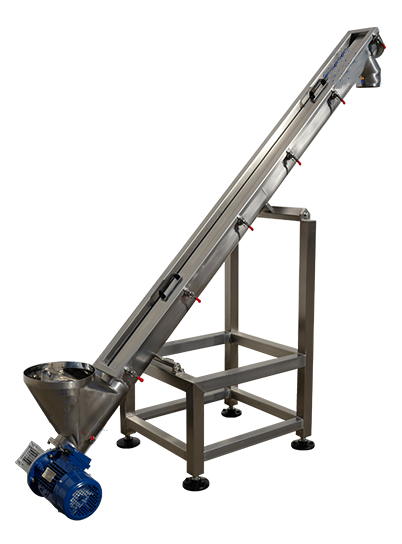

The feeding tube is a 'U' - shaped groove with a stainless steel circular arc cover, which is fastened with a buckle and sealed with a sealing strip in the middle to prevent powder leakage. The cover can be opened for easy cleaning.
Main parameters
| model | DH-US1-1K | DH-US1-2K | DH-US1-3K | DH-US1-5K | DH-US1-7K | DH-US1-8K | DH-US1-12K |
increase speed | 1m3/h | 2m3/h | 3m3/h | 5 m3/h | 7 m3/h | 8 m3/h | 12 m3/h |
U-shaped groove diameter | Φ89 | Φ102 | Φ114 | Φ141 | Φ159 | Φ168 | Φ219 |
Total machine power | 0.4KW | 0.4KW | 0.55W | 0.75KW | 0.75KW | 0.75KW | 1.1KW |
Total weight | 75kg | 80kg | 90kg | 100kg | 110kg | 120kg | 150kg |
