Brief description

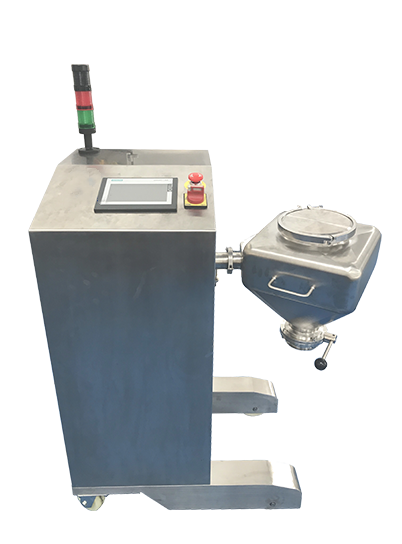

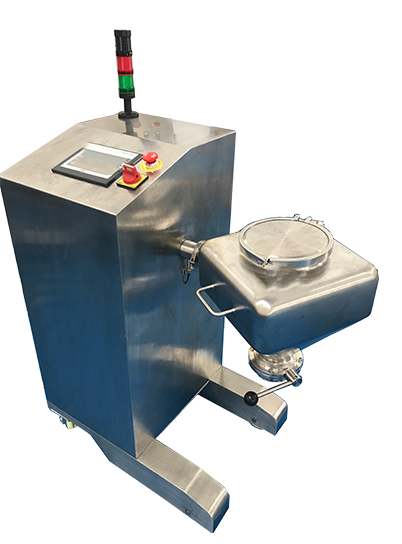

The laboratory type mixer is installed on a movable base. The main components include the frame, rotary system, electrical control system, hopper, etc. The conical mixing hopper is mainly composed of a hopper body, a hopper cover, clamps, butterfly valves, etc.
Main features
1. The mixing bucket and the main engine are connected in a quick release manner, making installation and disassembly convenient.
2. Different mixing hoppers can be configured, eliminating the need for frequent material transfer, feeding, and other procedures to meet experimental testing needs.
3. Adopting PLC fully automatic control, automatic mixing, automatic positioning, and humanized control operation.
4. The whole machine has no hygiene blind spots, and the exposed material is made of high-quality austenitic stainless steel, which fully meets the GMP requirements for pharmaceutical production.
Main parameters
model | TLB-5 | TLB-10 | TLB-20 | TLB-25 | TLB-50 | TLB-100 |
hopper volume（L） | 5 | 10 | 20 | 25 | 50 | 100 |
Maximum working volume（L） | 4 | 8 | 16 | 20 | 40 | 80 |
Maximum loading weight (KG) | 2.5 | 5 | 10 | 12.5 | 25 | 50 |
speed（rpm） | 3-25 | 3-25 | 3-25 | 3-20 | 3-20 | 3-20 |
Total weight（kg） | 300 | 300 | 300 | 500 | 500 | 500 |
Total machine power（kw） | 0.4 | 0.4 | 0.4 | 0.75 | 0.75 | 0.75 |
Chief of Staff（mm） | 1280 | 1280 | 1280 | 1500 | 1500 | 1500 |
overall width（mm） | 850 | 850 | 850 | 1050 | 1050 | 1050 |
total height（mm） | 1300 | 1300 | 1300 | 1350 | 1350 | 1350 |
power supply | 3P AC208-415V 50/60Hz | |||||
